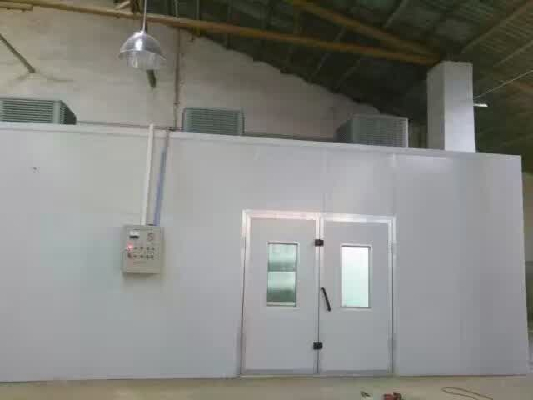

Technical parameter editor

Inner diameter of spray baking room

20000 * 5000 * 5000mm (W * L * H)

Outside diameter of spray baking room

20144 * 6896 * 5600mm (W * L * H)

Gutter

2 rows of single row digging pit, pit size: 18000 x 840 mm (L * W)).

Front door

Single door, gate 4, 4000 x 4500mm (H * W), color: optional

Work gate

2 fans, 700 x 2000mm (H * W), color: optional

wall

The middle of the wall with 4 type steel reinforcement, the top 4 type steel composite beams

wallboard

The thickness of 70mm, and delta =0.5mm color steel plate, socket type, the width is 1150 mm, the filling material: EPS color: optional.

lighting

26 x 4 lamp group =104 branch of 36W lamp, down lamp with 18 x 4 group =72 teams 36W vertical waist lamp (left /8, right /8, /2).

Cabinet device:

After the upper side upper wind, wind, square steel frame white mask. Galvanized steel cover.

Air base

Air supply and distribution with 6 double inlet centrifugal fan, single fan model and technical parameters are as follows: model YDW5. 6M, power: 7.5KW, flow: 20000m3/h. Air exhaust with 3 double inlet centrifugal fan, single fan model and technical parameters are as follows: model: TAE-710H, power: 11KW, flow: 36000m3/h fan, belt drive.

heating system

With 3 RG5S Li Nga Road fuel burner, 3 stainless steel, heat exchanger, 3 electric door executive paint recycling. Heat: 780000Kcal/h.

Filtration system

Primary filtration, advanced filtering, glass cotton filter, M type activated carbon filter and single wire pumping glass filter.

Roof

Single sheet metal bending roof

Electronic control system

Spraying, heat spraying, baking, time setting, lighting switch, fault indicating lamp, a temperature controller. The power switch, emergency stop, when tired. Temperature limiter.

Light illumination

More than 450LUX

High working temperature

80 C

No-load wind speed

More than 0.25m/s

Total power

85KW
