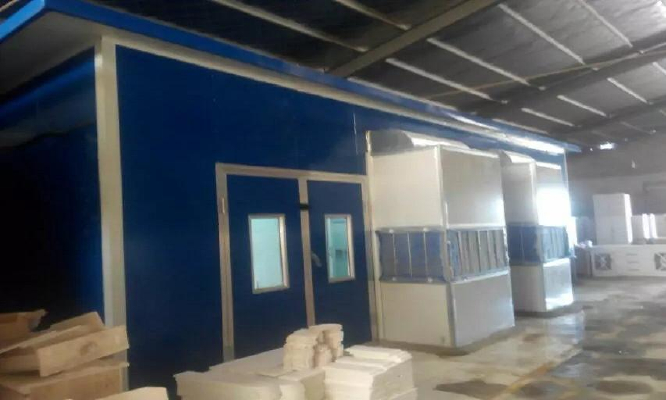

1. Dimensions: 7000x5100x4000 diameter size: 6900x3900x2650 into door size: 2950x2450 base system. Boarding by 0.8 galvanized plate bending and, the bottom beam with 12# steel welding, configuration press cotton supporting net, grid twice, grille with flat steel 30x4 welding and galvanized: three times the pattern plate, pattern plate thickness 2mm, car slope 2mm pattern plate production, the whole structure, durable, beautiful and generous.

. filtration system: at the beginning of the air filter efficiency. The HP thin plate type filter lacquer, high efficiency air filter using efficient RK-600G type three-dimensional spray filter cotton, flame retardant grade F5. Thick 25mm, spray paint filter using two glass fiber cotton.

The top 3 parts: light steel structure skeleton by 40x80 pipe welding and painting, and use the 0.6 color steel plate bending beam. Cotton top bracket adopts 25x25 square tube and 16mm diameter circular spray welded pipe, a total of eight cotton filter box.

The 4 chamber system: 50mm rock wool board, and 0.4mm coating color steel plate. The door plate made of composite rock wool with Aluminum Alloy type, the observation window glass with 5mm glass. Working gate size is 1800x750, the frame with 1.2 thick Aluminum Alloy produced by one-time pressing the door.

5 air supply system: 2 sets of YDW4kw type air distribution system: 1 sets of YDW5.5kw type fan

6 paint mist filter: the use of carbon fiber cotton or paint filter paper filter

7 heating system: twelve sets of quantum radiation heaters, both sides of the eight groups for the track to move the installation, after the test of the two groups for the fixed installation, the top of the track sliding installation, a total of six sets of control.

8 paint room: electronic control system: selection of high-quality domestic appliances assembly. Time display, temperature display, alarm and other functions.

9 lighting system: the use of up and down lighting. Ensure no shadow and operation blind area, light illumination >1000Lux. Top lighting using 32 36W PHILPS lighting lamp and ballast, protective glass 5 cm glass, the use of lighting light boxes with 0.5 color plate fold system.
