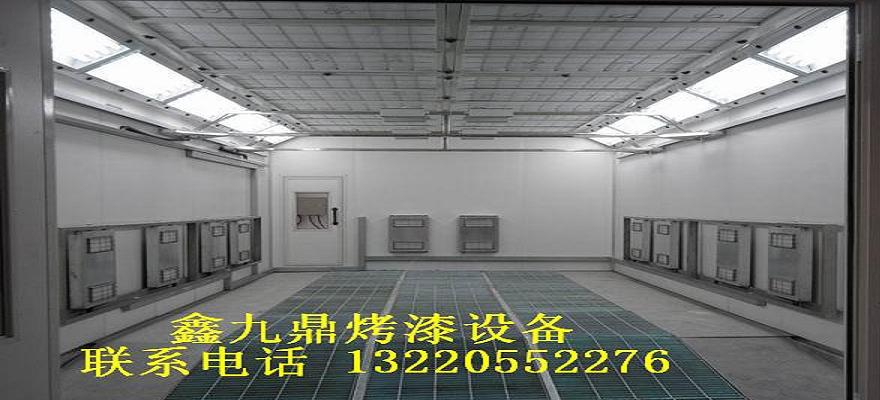

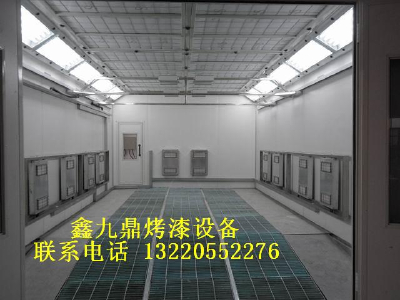

Technical parameters of automotive paint room:

1, outside diameter size (length * width * height) mm:7000 * 5000 * 3150

2, inside diameter size (length * width * height) mm: 6900 * 2600 * 3900

3, gate specifications (wide * high) mm: 2500 * 3000

4, into the wind fan wind m3/h:24000, out of the wind fan 12000

5, when the average wind speed m/s:0.35 (there is a load)

6, light illumination Lux:800

7, air filtration efficiency: > 98%

8, noise: less than 75dB

9, the maximum operating temperature: 80

10, heating speed (20 ~ 80 degrees C) min:15 ~ 20

11, the maximum power consumption kw/h:24

12, total power 34.5kw, (including the fan 10kW, electric heating 24kw, lighting 1.5KW)
